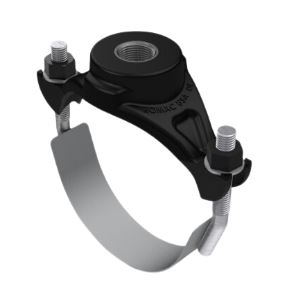

ROMAC 101NS-6.90 x 1 IPS 6 x 1 SERVICE SADDLE (6.63-6.90)- SINGLE STRAP
283-069042
176063
95005212572
- DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (BOLT/NUT/WASHER/STRAP) MATERIAL
- 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED FINISH
- ANSI/AWWA C800, ANSI/NSF 61/372 APPLICABLE STANDARD
- ASTM A194/A240/A536/D2000 MATERIAL SPECIFICATION
- 350 PSI PRESSURE RATING
- SINGLE STRAP MOUNTING TYPE
- 6 INCH NOMINAL PIPE SIZE
- 1 INCH IP THREADED OUTLET CONNECTION
- OVERALL DIMENSION 8.88 INCH LENGTH X 4 INCH WIDTH
- PIPE OUTER DIAMETER 6.63 TO 6.9 INCH
- USED ON STEEL, CAST IRON, ASBESTOS CEMENT, PLASTIC AND OTHER TYPES OF PIPE
- 101NS MODEL
95005212572
