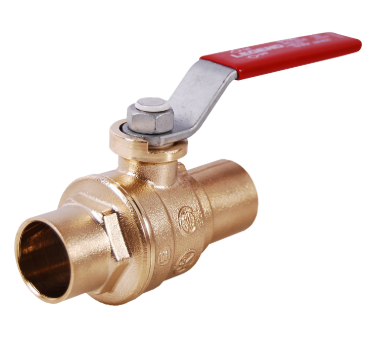

LEG 101-044NL 3/4 S-1001 NL CXC FP BV *ITALY*
101-044NL
1177753
66254508178
- 3/4 INCH NOMINAL SIZE
- UL, CSA (CANADA AND US), FM, NSF/ANSI 61G, ANSI/ASME B1.20.1, MSS SP-110, ISO 9002 APPLICABLE STANDARD
- POTABLE WATER, PLUMBING APPLICATION
- ASTM A510 UNS G10060 DACROMET COATED STEEL HANDWHEEL NUT, TFM PTFE ANTI-FRICTION WASHER/THRUST WASHER, FLUOROCARBON STEM O-RING, CW510L UNS C28500 FORGED BRASS END ADAPTER, ASTM A510 UNS G10060 DACROMET COATED STEEL LOCKING DEVICE, BOTTOM LOADED BLOWOUT PROOF STEM INCLUSIONS/FEATURES
- CW510L UNS C28500 FORGED BRASS BODY MATERIAL
- 150 PSI WSP, 600 PSI CWP PRESSURE RATING
- FEMALE SOLDERED X FEMALE SOLDERED END CONNECTION
- ASTM A510 UNS G10060 DACROMET COATED STEEL HANDLE MATERIAL
- 2.36 INCH END TO END DISTANCE
- LEVER HANDLE ACTUATION TYPE
- TFM PTFE SEAT MATERIAL
- CW510L UNS C28500 FORGED BRASS STEM MATERIAL
- FULL PORT TYPE
- CW510L UNS C28500 FORGED BRASS BALL MATERIAL
- LEAD-FREE
- S-1001NL MODEL
66254508178
PLBG
