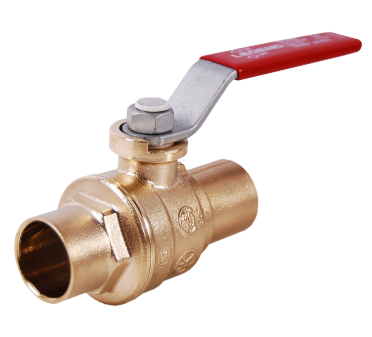

LEG 101-043NL 1/2 S-1001 NL CXC FP BV *ITALY*
101-043NL
1177752
66254508176
- 1/2 INCH X 1/2 INCH NOMINAL SIZE
- NSF/ANSI 61G/372, ANSI Z21.15, ANSI/ASME B16.33, UL, CSA (CANADA AND US), FM, MSS SP-110, ISO 9002 APPLICABLE STANDARD
- PLUMBING, INDUSTRIAL, COMMERCIAL, HYDRONIC SYSTEM, POTABLE WATER, NATURAL, MANUFACTURED, MIXED, LIQUID, PETROLEUM, LIQUID PROPANE GAS/AIR MIXTURE, GAS, HOUSING PIPING SYSTEM APPLICATION
- TAMPER EVIDENT DACROMET COATED STEEL HANDWHEEL NUT, TFM PTFE ANTI-FRICTION WASHER/THRUST WASHER, FORGED BRASS END ADAPTER, (2) FLUOROCARBON STEM O-RING INCLUSIONS/FEATURES
- CW510L UNS C28500 FORGED BRASS BODY MATERIAL
- 150 PSI SWP, 600 PSI CWP PRESSURE RATING
- FEMALE SOLDERED X FEMALE SOLDERED END CONNECTION
- ASTM A510 UNS G10060 DACROMET COATED STEEL HANDLE MATERIAL
- 2.32 INCH END TO END DISTANCE
- TFM PTFE SEAT MATERIAL
- CW510L UNS C28500 FORGED BRASS STEM MATERIAL
- FULL PORT TYPE
- CW510L UNS C28500 FORGED BRASS BALL MATERIAL
- LEAD-FREE
- S-1001NL MODEL
66254508176
PLBG
