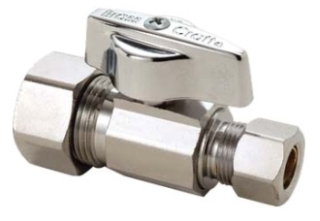

5/8 COMP X 3/8 COMP STRAIGHT STOP
KTCR14XC
449108
02661313862
- STRAIGHT TYPE
- 1/2 INCH X 3/8 INCH NOMINAL SIZE
- ASME A112.18.1/CSA B125.1, IAPMO, CUPC, NSF/ANSI 372/61 APPLICABLE STANDARD
- RESIDENTIAL, COMMERCIAL APPLICATION
- 40 TO 180 DEG F TEMPERATURE RATING
- 1-PIECE MACHINED BRASS BODY, CHROME PLATED BRASS STEM, CHROME PLATED BRASS BALL, RUBBER STEM O-RING, ZINC PLATED STEEL SCREW, CHROME PLATED BRASS COMPRESSION NUT, BRASS COMPRESSION SLEEVE INCLUSIONS/FEATURES
- CHROME PLATED BRASS BODY MATERIAL
- 125 PSI PRESSURE RATING
- COMPRESSION X COMPRESSION END CONNECTION
- CHROME PLATED DIE-CAST ZINC HANDLE MATERIAL
- 2.32 INCH END TO END DISTANCE
- 1/4 TURN ACTUATION TYPE
- PTFE SEAT MATERIAL
- KT[TM] BRAND
- LEAD-FREE
- KTCR14 MODEL
02661313862
